RAMPTECH High Quality Products

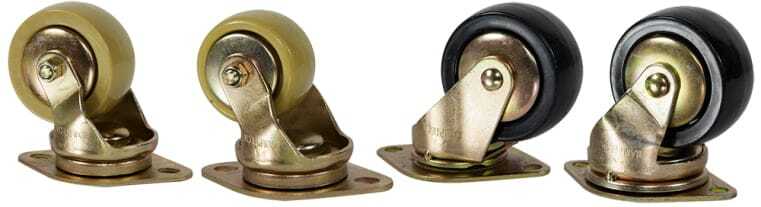

RAMPTECH® Casters
DOWNLOAD PRODUCT SHEET
Engineered for the long haul.
Constructed of steel with a diamond base plate, RAMPTECH® Casters are specifically engineered to provide high impact strength and deliver incredible durability. Want even more reasons why these casters are built to last? They are also water and chemical resistant, and they feature a sturdy 3.5 mm fork, double ball race and sealed wheel bearing.
These high-quality casters feature rugged, smooth-rolling nylon wheels. In addition, cost-effective RAMPTECH® Casters are used on carts, trailers, dollies, and a full range of other ground support equipment.
FEATURES
- High impact strength
- Water and chemical resistant
- Light weight
- Low cost

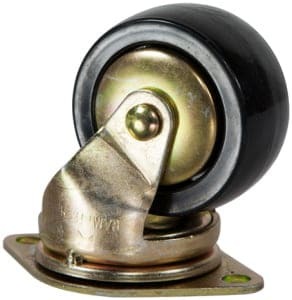

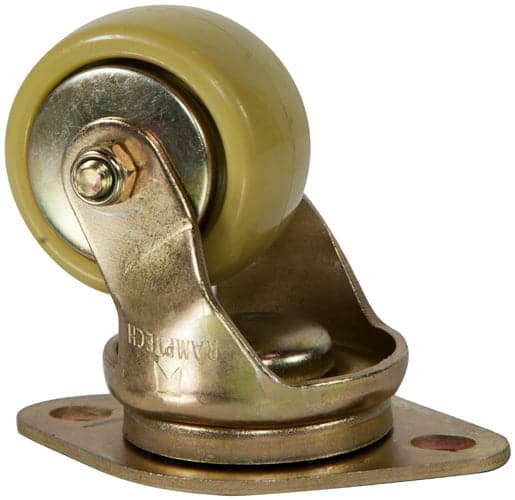

RAMPTECH® CASTER
(4.01 2-HOLE)
Sage P/N 503026
Overall Height: 4.01 in. (102 mm)
Load Capacity: 700 lbs. (318 kg)
Wheel Diameter: 3 in. (76 mm)
Wheel Type: Nylon
Wheel: Bearing Ball
Base Plate: Diamond
Replaces
401N
Clyde 1503887
Handiquip 25E-N34
TLD 1120391
WASP H004836
RAMPTECH® CASTER
(3-25/32 2-HOLE)
Sage P/N 5030261
Overall Height: 3.83 in. (97 mm)
Load Capacity: 700 lbs. (318 kg)
Wheel Diameter: 2.5 in. (63.5 mm)
Wheel Type: Nylon
Wheel: Bearing Ball
Base Plate: Diamond
Replaces
325N
RAMPTECH® CASTER
(3-25/32 2-HOLE)
Sage P/N 503022
Overall Height: 3.9 in. (100 mm)
Load Capacity: 700 lbs. (318 kg)
Wheel Diameter: 3 in. (76 mm)
Wheel Type: Nylon
Wheel: Bearing Ball
Base Plate: Diamond
Replaces
Faultless 25696
WASP H001155
RAMPTECH® CASTER
(3-25/32 4-HOLE)
Sage P/N 503021
Overall Height: 3.70 in. (94 mm)
Load Capacity: 700 lbs. (318 kg)
Wheel Diameter: 3 in. (76 mm)
Wheel Type: Nylon
Wheel: Bearing Ball
Base Plate: Diamond
Replaces
Faultless 25675
JBT 232-8652
JBT 515-4367
WASP H1143
