RAMPTECH^® Toyota Hub & Rotor

HUB & ROTOR
Sage P/N 30607ASSY

HUB ASSEMBLY
Sage P/N 432134363071ASSY

ROTOR
Sage P/N 432144363071AFT

DOWNLOAD PRODUCT SHEET

RAMPTECH^® Toyota Hub & Rotor are built to the most stringent of automotive standards. The rotor is built utilizing SAE-J431 Automotive SAE grade G3500 gray cast iron. The hub is built utilizing AISI 4140 chrome moly high tensile steel.

Both parts are precision machined within exacting tolerances of +/- 0.005. All specifications meet or exceed OEM standards.

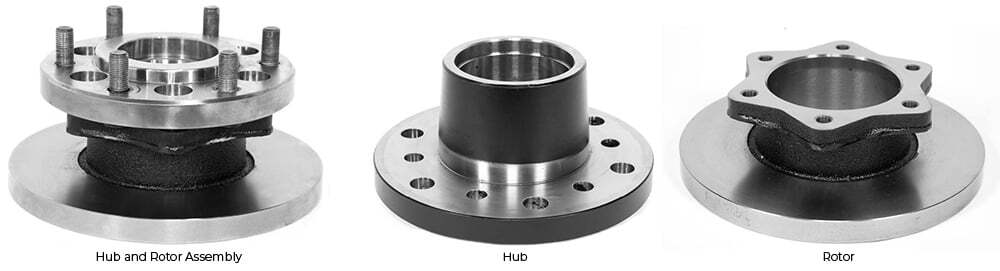

HUB & ROTOR ASSEMBLY

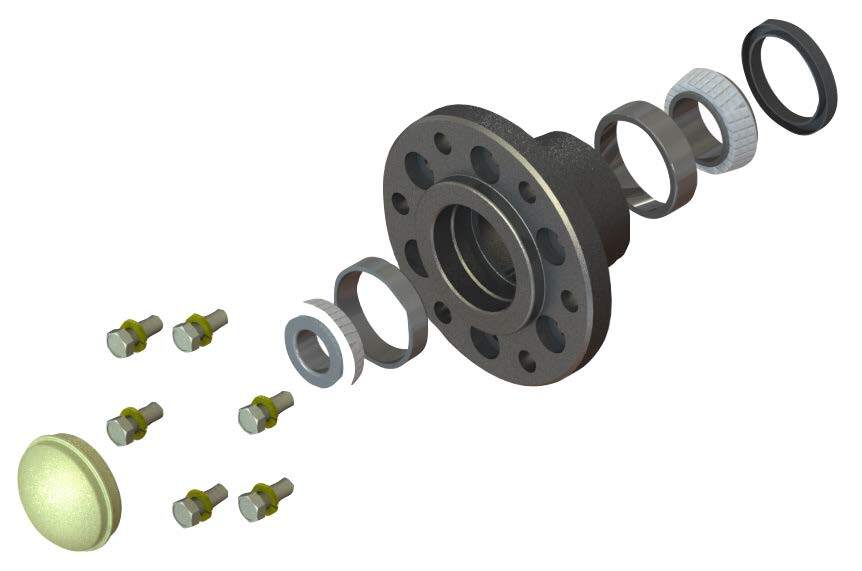

No extra work… The Hub and Rotor comes fully assembled including grease packed bearings, wheel seal, lug studs, and grease cap. The rotor is rotor also attached.

HUB ASSEMBLY Only

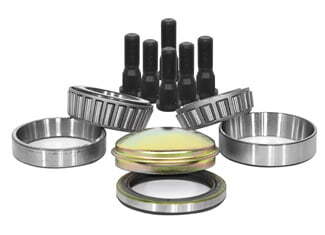

The hub when sold alone comes fully assembled: including grease packed bearings, wheel seal, lug studs, and grease cap.

APPLICATION

Toyota TD 15, 20, 25, 30, 40, 50 series tow tractors with front disc brakes.
