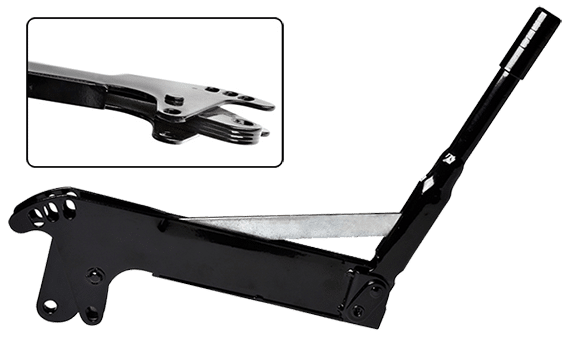

RAMPTECH^® GSE E-Brake Lever

Sage P/N 96688

DOWNLOAD PRODUCT SHEET

A new standard for quality.

The RAMPTECH^® GSE E-Brake Lever recognizes a new standard for quality. We listened to users in the field and engineered a new and improved version of the Orscheln type lever originally used on the Tug tractors. This new RAMPTECH^® GSE E‑Brake Lever is designed for GSE and the ramp and will last longer than the original. Added strength was developed for enhanced improvement and performance.

This new RAMPTECH^® GSE E-Brake Lever includes design improvements that focused on stress areas to enhance product life and performance with no change to its form, fit, or function, and is a direct replacement with no modifications needed.

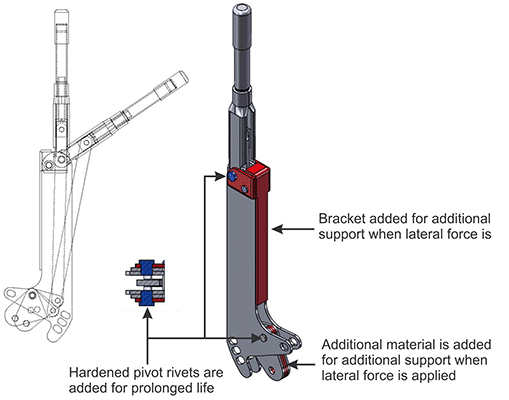

FEATURES

• A reinforcing bracket is added for additional lateral support
• A mounting anchor spacer is added for durability
• Improved riveting is added to endure the most aggressive environment
• Improved overall design for longevity and reduced product life cycle cost

REPLACES

Clark Equipment – 695423
Harlan – 27002
Orscheln — 1041805, 02182900
Tiger – 771354, 988918
Tug — T6-8005–101
