RAMPTECH^® Tri-Flo LayFlat Ducting

DOWNLOAD PRODUCT SHEET

Designed to exceed your expectations.
Not your budget.

With RAMPTECH^® TriFlo PCA Ducting from Sage Parts, more is less. More quality, more durability. Less cost. It all adds up to the kind of superior value you expect from Sage Parts.

High Performance Features

Innovatively engineered linear-welded construction and flexible design combine to provide highly reliable and efficient transport of pre-conditioned air – even under the  harshest weather conditions on the busiest, most demanding ramps.

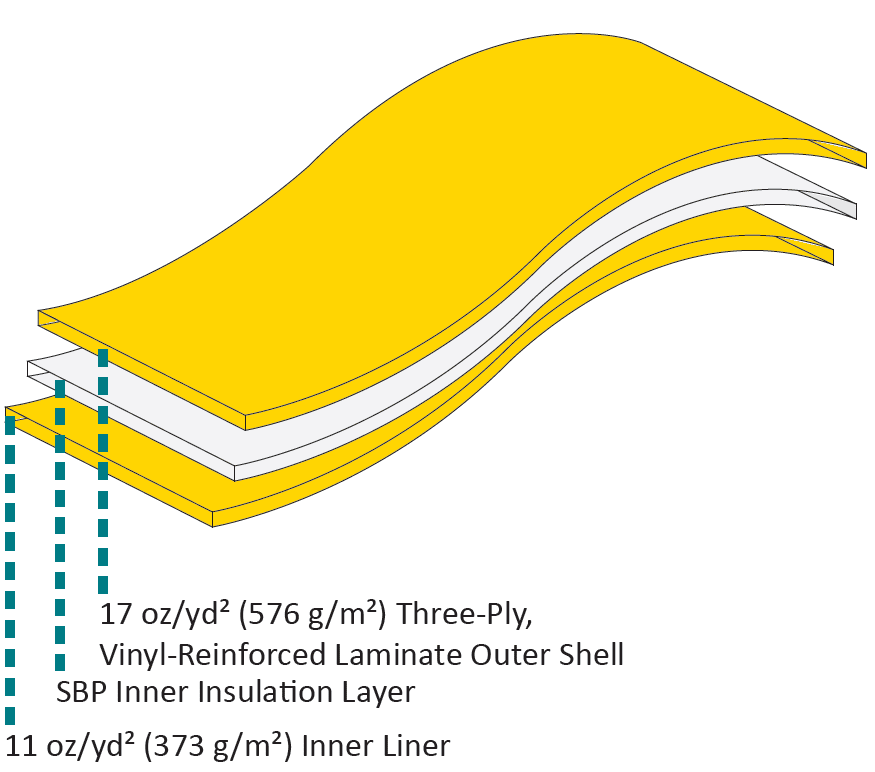

OUTER SHELL

The 17 oz./yd² (576 g/m²) three-ply, vinyl-reinforced laminate outer shell is designed for durable wear and high abrasion resistance. The outer shell features mold and mildew inhibitors and is UV stabilized for protection against harmful sun degradation.

INNER INSULATION LAYER

The inner insulation layer consists of stitch-bonded polyester insulation similar to the high performance material found in high-end cold weather clothing and camping products.

INNER LINER

The inner sleeve is made of VentaTex^® 11-1812, an 11 oz./yd.² (373 g/m²), high-strength, three-ply PVC fabric manufactured by ABC Industries, Inc. VentaTex^® 11-1812 is specially designed to eliminate delamination commonly found in other inner liners. It is constructed by compressing high-tenacity, high-density polyester yarn between PVC films.

SPECIFICATIONS

• TEMPERATURE
  -20°F to 180°F (-29°C to 82°C)
• DIAMETER
  12 in. and 14 in. (305 mm and 356 mm)
• LENGTH
  20 ft. and 25 ft. (6.1 m and 7.62 m) Custom lengths available upon request
• COLOR
  Yellow
• OPTIONAL ENDS
  Fold Over Velcro^® Cuff
